| Head Unit Installation

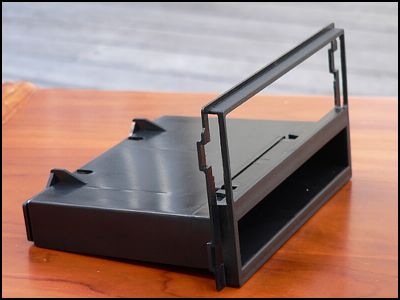

The picture above shows a modified Scosche HY1608B adapter that I used to mount the Pioneer head unit in the dash. Scosche claims that the HY1608B is the right adapter for this purpose, but my experiments suggest that using it unmodified would leave open gaps at the top and bottom of the deck as the mounting gap is too narrow.

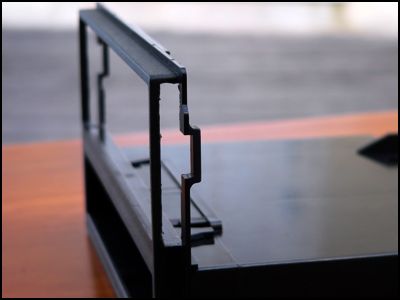

A close-up view of the modification.

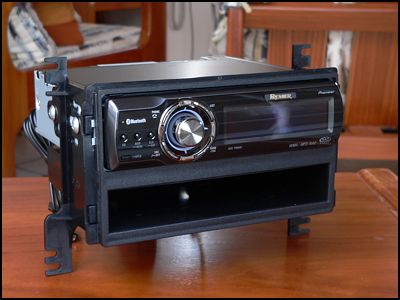

The head unit, mounted in the modified adapter. No open gaps above or below the deck.

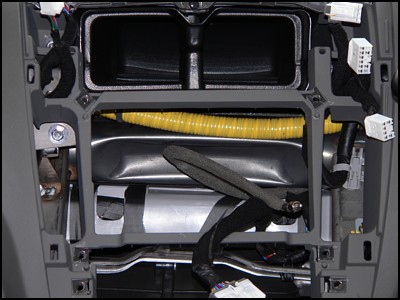

The hole in the dash where the head unit is destined to go. Getting to this point takes about 45 minutes of removing screws, clips and connectors.

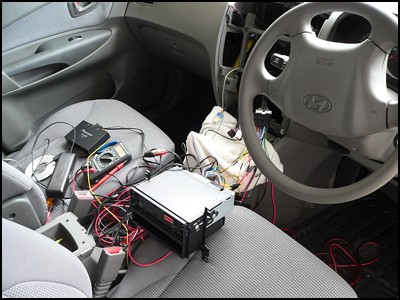

Getting all the wires together...

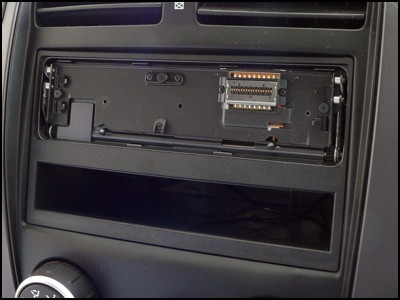

The head unit and mounting adapter in place, without the head-unit's faceplate.
Another view of the head unit.
